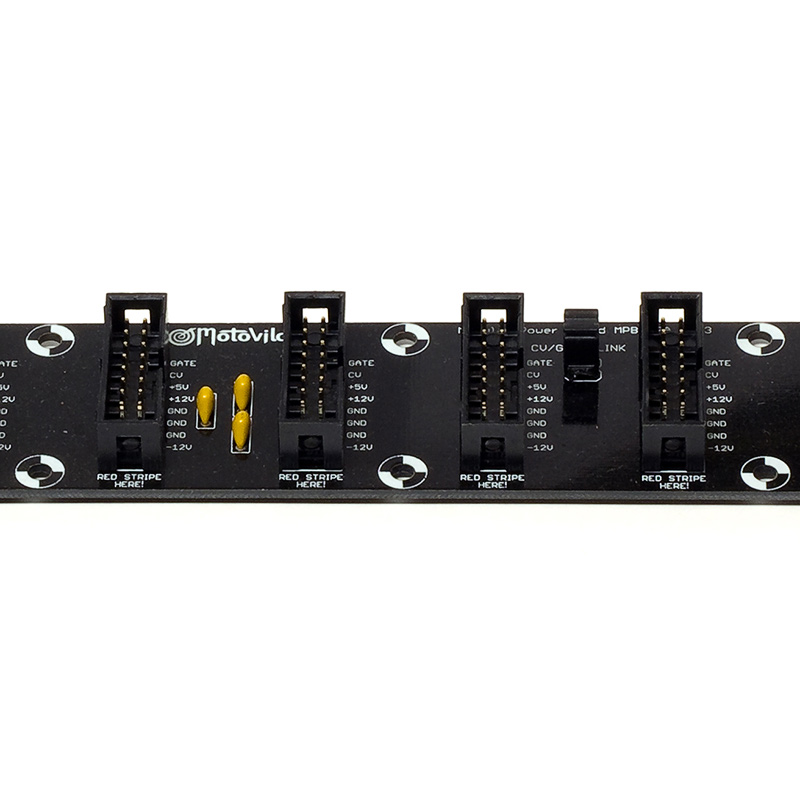

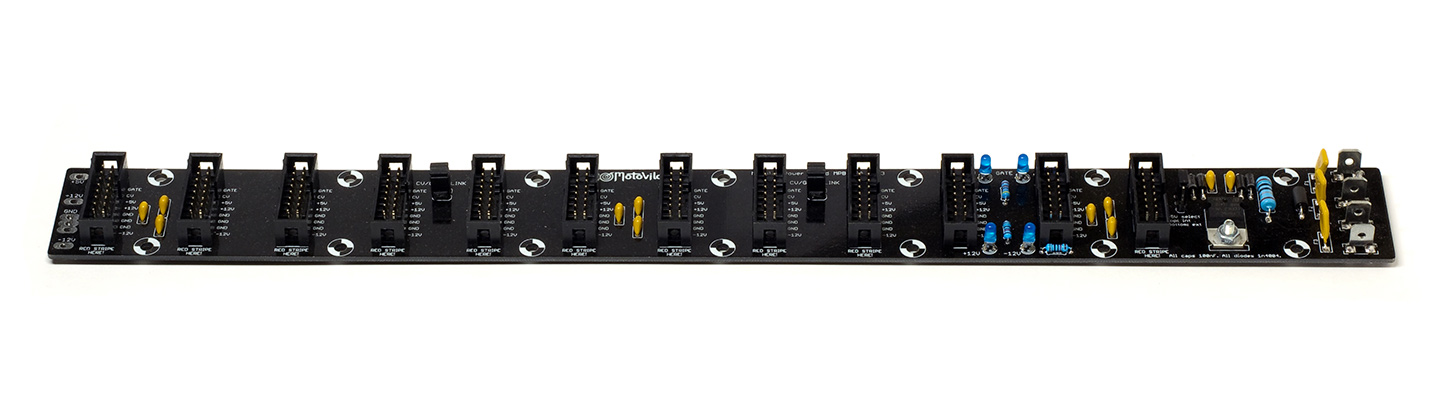

Motovilo MPB-12A

$ 50.00

Advanced power distribution board for Eurorack modular system

SKU: MV-MPB12A Categories: ,

Description

Motovilo MPB-12A is a high-quality power distribution board for Eurorack case of the most popular width: 84hp.

Features:

  • 6.3 mm blade terminals for easy connections.
  • Resettable PPTC fuses on power rails.
  • The onboard voltage regulator provides +5V from +12V rail. Also, you can use an external 5V power supply. Configurable by the jumper.
  • Filter capacitors on power rails — helps to suppress bleedthrough between modules and pulsations from the power board.
  • 12 Keyed shrouded power connectors.
  • Indicator LEDs show +12v, −12v, +5v and GATE signals
  • 3 linkable groups of CV/GATE rails.
  • Additional shielding ground wire between CV & GATE rails.
  • Increased copper thickness – 2 oz.
  • 14 mount holes ⌀=3.2mm.
  • Dimensions:  356mm × 36mm (14″×1.4″)







Additional information

Weight0.078 kg
Dimensions35.6 × 36 × 2 cm
